LED ID Light Bar

advertisement

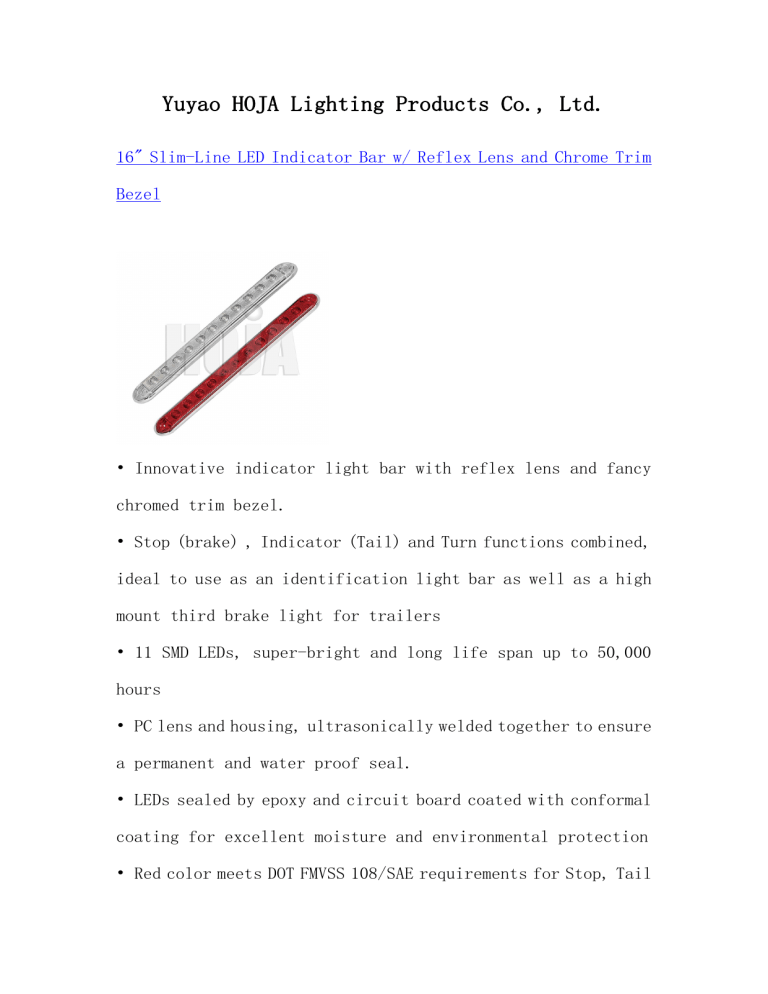

Yuyao HOJA Lighting Products Co., Ltd.
16" Slim-Line LED Indicator Bar w/ Reflex Lens and Chrome Trim
Bezel
• Innovative indicator light bar with reflex lens and fancy
chromed trim bezel.
• Stop (brake) , Indicator (Tail) and Turn functions combined,
ideal to use as an identification light bar as well as a high
mount third brake light for trailers
• 11 SMD LEDs, super-bright and long life span up to 50,000
hours
• PC lens and housing, ultrasonically welded together to ensure
a permanent and water proof seal.
• LEDs sealed by epoxy and circuit board coated with conformal
coating for excellent moisture and environmental protection
• Red color meets DOT FMVSS 108/SAE requirements for Stop, Tail
and Indicator functions.
• Rated for 12V, tested to 13.8V
• Also available in multi-voltage 10~30V operating range or 24V
by special order
Current
Input
Lighting
Part No. Description
LED Count Draw (mA)
Voltage
Color
at 13.8V
Light Only w/o
116211RL
12V
Red
11
15/250 mA
12V
White
11
15/100 mA
12V
Red
11
15/250 mA
12V
White
11
15/100 mA
12V
Red
11
15/250 mA
12~24 V Red
11
15/250 mA
Bezel, Red
Light Only w/o
116211CL
Bezel, Clear
Light
Kit
116211R
w/Bezel, Red
Light
116211C
Kit
w/Bezel,
Clear
Light Kit w/
116211CR Bezel,
Clear/Red
Light
Kit
116211RM
w/Bezel
RED,
Multi-voltage
Light
Kit
w/Bezel
116211CM
12~24 V White
11
15/100 mA
Clear,
Multi-voltage
13.5" LED Light Bar Reflex Lens, STT & Back Up Light Combined
•
Innovative identification light bar with auxiliary
reflex reflector on the lens
•
Stop, Tail (Indicator) and Turn functions combined along
with Back Up light built in, ideal to use as an identification
light on trailers, RVs and speciality vehicles
• SMD LEDs, 8 Red and 6 white, super-bright and long life span
up to 50,000 hours
• PC lens and housing, sonic welded and epoxy potted on the
back to ensure a permanent and weather proof seal, IP 65 rated
•
Meets DOT FMVSS 108/SAE requirements for STT & Back Up
functions when vertically mounted; lens marking: STI(2)RA
• Rated for 12V, tested to 13.8V
Input
Part No.
LED
Lighting Current
Draw
Description
Voltage Count Color
8 Red /
Red Lens Red
116008RL
Red
Red/
12V
6
Light
Clear
(A) at 13.8V
0.1A/0.01A,
White
White
White 0.15A
8 Red /
Red
Lens
116008CRL
Red/
12V
6
Red Light
0.1A/0.01A,
White
White
ID Light Harness of 3x3/4" LED M/C Lamps
White 0.15A
•
Consists of 3 piece 3/4" marker and clearance lamps
(3x112903R)
• Maximum lamp spacing: 12"; jacketed wire length: 56" or
variable by special order
• Harness with 0.180 male bullet ends for connection
• Whole light kit completely water proof (IP65)
• Meets DOT FMVSS 108/SAE requirements, P2 rated
• Rated for 12V, tested to 13.8V
• Also available in multi-voltage 10~30V operating range, or
24V by special order
Current
Input
Part No.
Lighting Lamp
Description
Draw
Voltage
Color
Count
13.8V
ID
Light
112933R-KT
12V
Harness
Red
3x112903R 0.05 A
at
